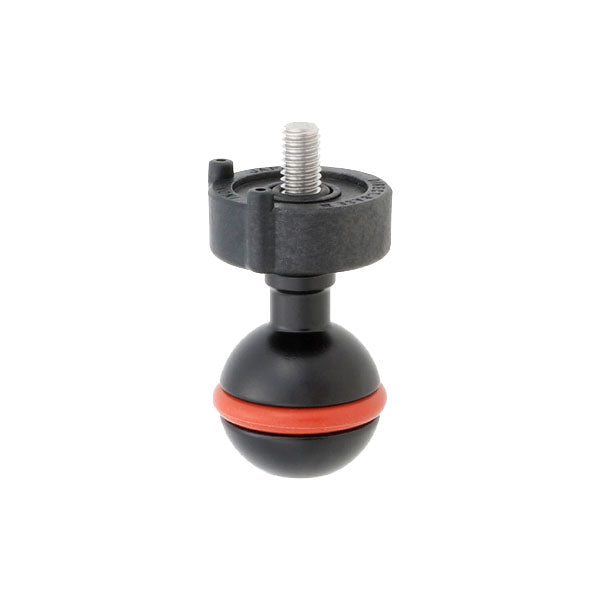

INON DIRECT BASE III

NOTE:

For LALAMOVE and AP CARGO COURIER, please choose "Pick-up" under Delivery Method upon check out. Shipping/Delivery fee will collect upon arrival of your item/s.

The Direct Base III is attached on majority of base products directly or on housings and particular bases via optional M6 Plate Direct Base III or M5 Plate Direct Base III to add INON Arm II system compatible ball-joint to link with an arm which is equipped with same type ball-joint or a strobe combined with Z Adapter MV, YS Adapter MV or Direct Base III with Clamp III.

Refined base design enables to attach on a strobe as well in addition to housings/bases. The ball-joint is made from metal to firmly fix strobe position by lightly clamp the [Clamp III] (it is necessary to loose the Clamp III to adjust strobe aiming). Depending on usage or preference, INON offers selection from [Direct Base III],[Z Adapter MV] or [YS Adapter MV].

Compatible base/housing etc. :

• Attached directly
  • Grip Base D4 / Grip Base M1 / D Holder / D Holder Extension Bar / Port Arm for MRS / Port Arm for UFL-M150 EFS60
• Attached via optional [M6 Plate Direct Base III]
  • X-2 series housing / X-1Z,LZ,NZ housings / Holder II / Grip Bar III Set / Holder II Grip Set / Holder Base / Grip Bar Set / Grip Bar II Set / Grip Base DIII / Grip Base DII / Other brands housing arm system (M6 threaded)(*)
    * Compatible with M6 screw holes with 8mm or more depth and center-to-center distance between 13mm and 28mm.
• Attached via optional [M5 Plate Direct Base III]
  • Other brands housing arm system (M5 threaded)(*)
    * Compatible with M5 screw holes with 6mm or more depth and center-to-center distance between 24mm and 28mm.
• Compatible strobe etc.
  • D-2000 / D-2000S / D-2000W / D-2000Wn / Z-240 / Z-220 / Z-220S / Z-220F / D-180 / D-180S / S-2000 / Strobe Light Holder LE /

[Direct Base III] attached on [D Holder]



[Direct Base III] attached on S-2000



[Direct Base III] with [M6 Plate Direct Base III]
